China Low thermal conductivity VIP fumed silica vacuum insulation panel with PET film Company, Companies

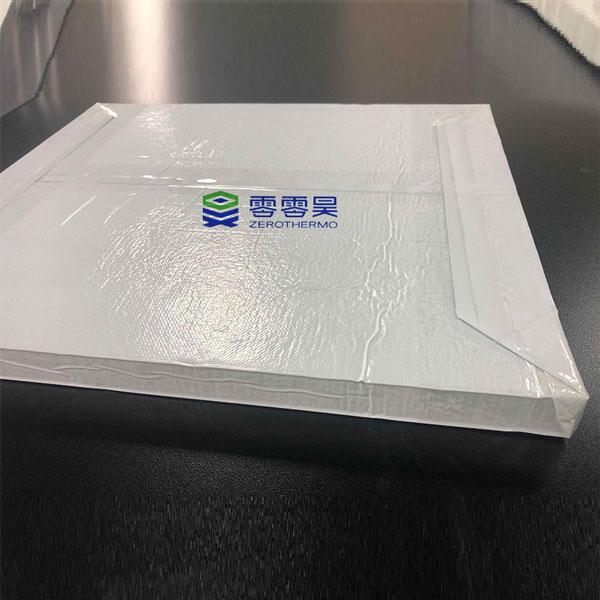

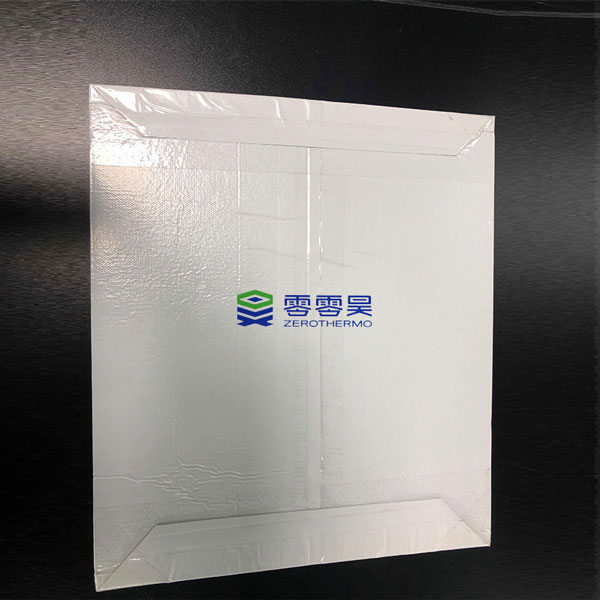

Compared with traditional Fumed silica vacuum insulation panel, Vacuum Insulation Panels with PET film are specially designed to strengthen the protection of vacuum insulation panels, and the PET films can effective protection protects the vacuum insulation panel surface, and it can avoid to be punctured or damaged. For PET film color, there are white and silver.
For Zerothermo Fumed silica Vacuum insulation panels(VIP), its thermal conductivity is less than 0.0045w / (m.k), which is the best cold chain insulation material and good thermal insulation and energy saving, When different insulation materials are selected to achieve the same insulation effect, the vacuum insulation panel (VIP board) can make the insulation materials smaller or make the available space of the incubator larger
Zerothermo Team are focused on innovating vacuum technology for many years, If you need these vacuum insulation panels (VIP), please feel free to contact us, we will reply you back in 12 hours with best customer service.
Supply Ability50000 Square Meter/Square Meters per Month
Packaging DetailsStrengthened Carton on Pallet / Wooden Carton + Pallet
Loading PortShanghai, Shenzhen China
Prices and Delivery TermsFOB, CFR, CIF, EXW, DDP
Payment CurrencyUSD, EUR, JPY, CAD, CNY, AUS
Payment TermsT/T, L/C, D/P D/A, Western Union, Cash
Technical Parameters
Parameter
Value
Thermal Conductivity [W/(m·K)]
≤0.0045
Thermal Resistance [m·K/W]
≥4
Density [kg/m3]
180~240
Puncture Strength [N]
≥18
Tensile Strength [kPa]
≥100
Compression Strength [kPa]
≥100
Surface Water Absorption [g/m2]
≤100
Expansion Rate After Being Punctured [%]
≤10
Thermal Conductivity After Being Punctured [W/(m·K)]
≤0.025
Service Life [years]
≥50
Flame-retardant
Level A
Working Temperature [℃]
-70~80
Durability (W/m.k)
Increase rate ≤0.001 (Aging test)
Vacuum Insulation Panels Insulated VIPs with PET Film

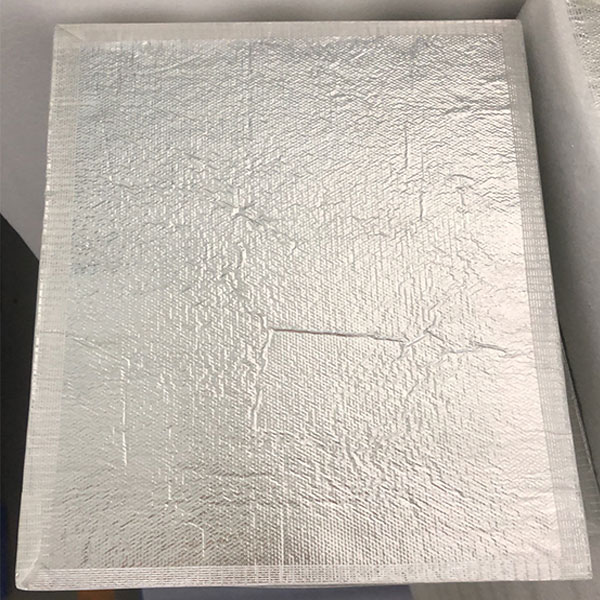

PET films color: Transparent or Silver
Excellent thermal insulation performance (up to 10 times more efficient than traditional insulation materials)
Maximum thermal protection (Low Thermal Conductivity ≤ 0.0045 W/mK)
Consists of 100% Non-Toxic materials with recycled materials
Meet or exceed energy efficiency regulations and standard
Core material consists of a pressed powder board of fumed silica
Flexibility for various shapes & size with thin design (5-50mm thickness)
Support custom sample with fast delivery time
Using the best high-barrier films (sealed under vacuum with a gas-vapor-tight film)
More than 50 years life span
Product Overview & Technology
Vacuum insulation panel (VIP) is a new generation of thermal insulation material that has developed rapidly in recent years. It is based on the principle of vacuum insulation. It improves the vacuum of the internal air in the panel and fills the core thermal insulation material to achieve reducing flow and radiation heat exchange. Generally speaking, the heat conduction coefficient of VIP can reach 0.003 ~ 0.004W/(m · k). Under the same thickness conditions, it has 10 times the excellent thermal insulation performance of traditional materials. VIP is mainly composed of three parts: Core material, Getter, or Dryer, and diaphragm.
Vacuum insulation panels can be custom made to fit specific sizes and shapes for some special equipment. The size range includes: Length (300-1200mm) * Width (300-800mm) * Thickness (5-50mm).
Regular Sizes
300mm x 600mm x 25mm
400mm x 600mm x 25mm
800mm x 600mm x 25mm
900mm x 600mm x 25mm
Applications & Packaging
These vacuum insulation panels are widely used for medicine Incubators, Freezers, Refrigerators, Cold Chain Logistics (especially used for vaccine cold boxes, ultra-low temperature freezers, cold storage containers), household refrigerators, yacht refrigerators, mini refrigerators, car refrigerators, cryogenic freezers, and vending machines.

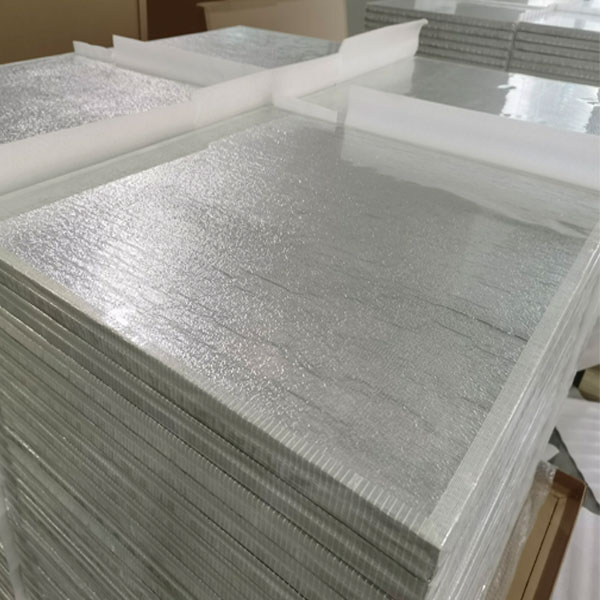

Standard Packaging: Wooden Carton + Pallet
Frequently Asked Questions (FAQ)
1. What is the thermal conductivity of the Vacuum Insulation Panels (VIP)?
The thermal conductivity of our VIP panels is extremely low, measuring ≤0.0045 W/(m·K), which provides up to 10 times the thermal insulation performance of traditional insulation materials.
2. What are the key materials used in these panels?
The panels consist of 100% non-toxic and recycled materials. The core material is made of a pressed powder board of fumed silica, enclosed within a high-barrier gas-vapor-tight film.
3. Can the size and shape of the VIP panels be customized?
Yes, we support customization for specific shapes and sizes. Our standard size range is Length (300-1200mm) * Width (300-800mm) * Thickness (5-50mm). Regular sizes such as 300x600x25mm and 400x600x25mm are also readily available.
4. What is the expected service life of these insulation panels?
These vacuum insulation panels are designed for long-term reliability and have a service life span of more than 50 years under standard operating conditions.
5. What are the primary applications for vacuum insulation panels?
They are widely used in medicine incubators, cold chain logistics (like vaccine cold boxes and cold storage containers), household and car refrigerators, yacht refrigerators, cryogenic freezers, and vending machines.
6. What packaging details are provided for shipment?
To prevent damage during transit, the panels are packed using a strengthened carton on a pallet, or via a wooden carton + pallet setup.
