Best High temperature insulation material-flexible nano thermal insulation mat Manufacturers, Company

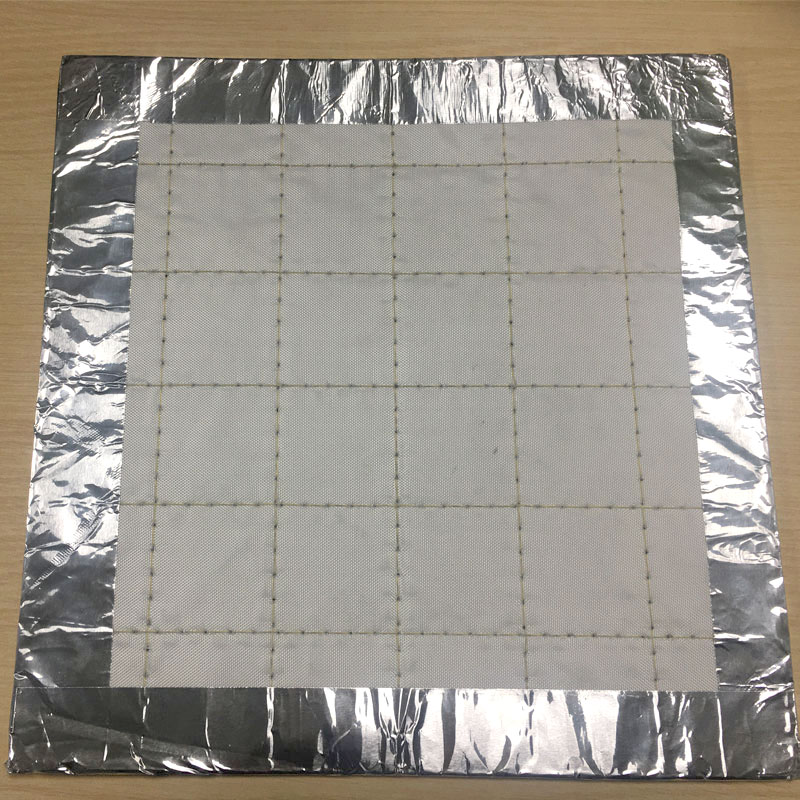

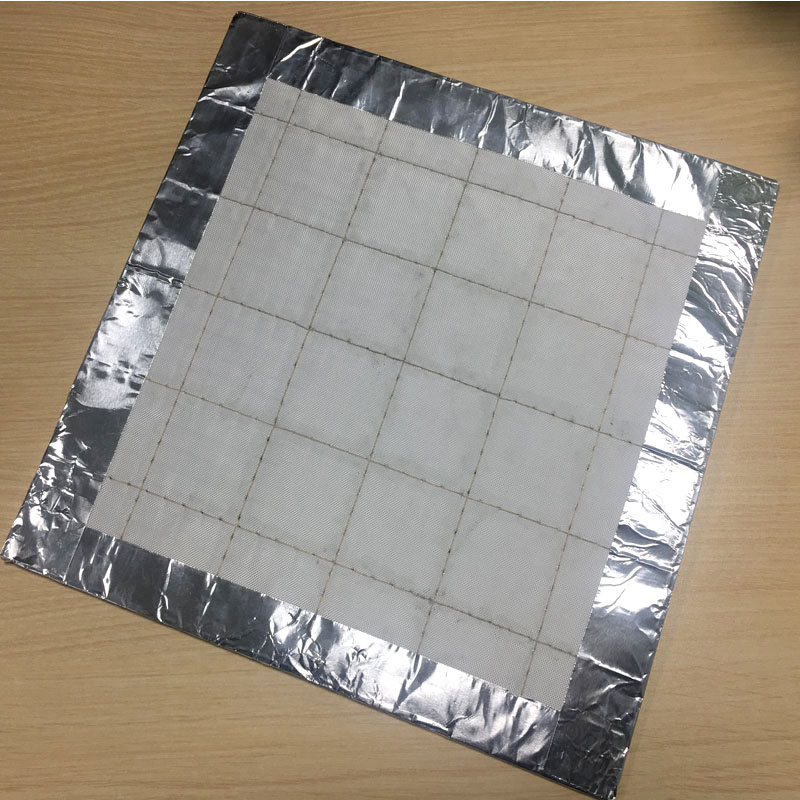

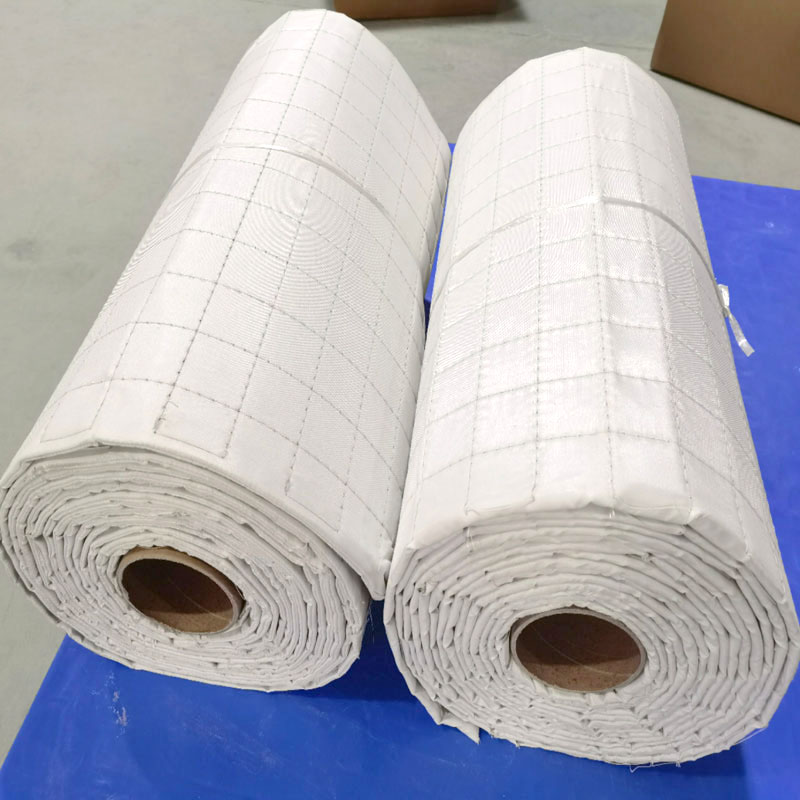

The surface of the flexible nano heat insulation mat is covered with a layer of high-temperature resistant fiberglass fabric and made into a grid shape with high-temperature thread seams. It has certain flexibility and can be installed on pipes or curved surfaces. At the same time, it is lower thermal conductivity than still air, and its thermal insulation performance is better 3 to 4 times than traditional materials. It is an ideal high-temperature thermal insulation material, It can be used in household appliances. High temperature pipeline, steam pipeline, chemical pipeline, cracking furnace, electronic instrument, fire door, heating furnace. This product is a non combustible material and can be used as a fireproof and thermal insulation layer. Good thermal insulation can therefore only be achieved by extremely high insulation thicknesses, and advantages of these fiber insulating materials are their high flexibility for size and shape. we have enough experience working with customers to design, and if needed, we can custom the size &shape as your requirements. If you are looking for high temperature flexible nano thermal insulation mat, please feel free to contact us, we will reply you back within 24 hours with best customer service.

Product Description

Technical Specifications
Size Custom-made
Thickness 5 ~ 10mm
Temperature Resistance Temperature resistance of core material 1000℃ (normal)
Density 280±10 (kg/m³) normal / 180~260 (kg/m³) bespoke
Core Material Composition Pressed powder board of fumed silica
Thermal Conductivity (T/C YB/T4130-2005 @hot surface):
Temperature (℃) Thermal Conductivity (W/mK)
200℃ 0.023 W/mK
400℃ 0.025 W/mK
600℃ 0.032 W/mK
800℃ 0.040 W/mK
Key Features & Advantages
An ideal high-temperature thermal insulation material
Temperature resistance is up to 1100 ℃
It can effectively block infrared radiation
No pulverization and long service life (More than 50 years lifespan)
Non-toxic, environmentally friendly, smokeless, and odorless
Does not contain inhabitable harmful fibers
Meet or exceed energy efficiency regulations and standards
Flexibility for various shapes & sizes with thin design
Support custom samples with fast delivery times
Applications & Manufacturing Process

Target Applications

Ideal for various thermal regulation setups:

High temperature pipelines, steam pipelines, chemical pipelines
Cracking furnaces, heating furnaces
Electronic instruments, fire doors

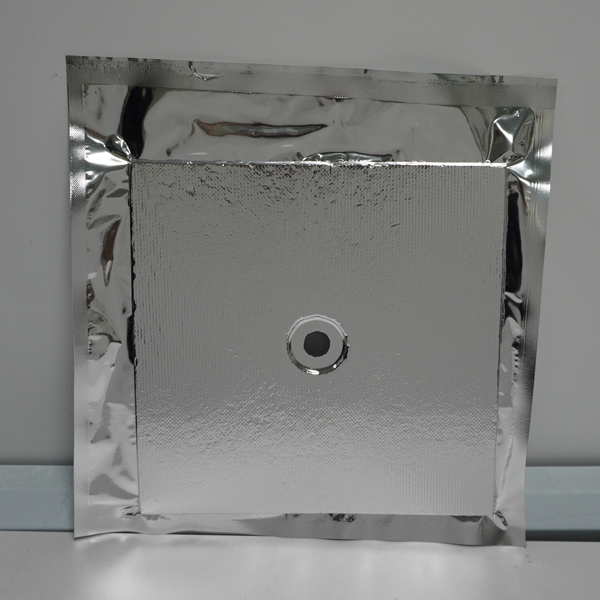

High Temperature Panels For Water Tank
Slotted Shaped Insulation Panels

Production Process

Core Material Mixing & Production: Formulated using high-grade fumed silica raw materials.
Core Packing: Wrapped with protective non-woven bags.
Outer Layer Stitching: Seamed with high-temperature resistant fiberglass mats using professional high-temperature thread.
Commercial & Shipping Terms
Prices and Delivery Terms FOB, CFR, CIF, EXW, DDP
Payment Currencies Accepted USD, EUR, JPY, CAD, CNY, AUD
Payment Methods T/T, L/C, D/P D/A, Western Union, Cash
Supply Ability 50,000 Square Meters per Month
Packaging Details Strengthened Carton on Pallet
Loading Ports Shanghai, Shenzhen, Guangzhou
Frequently Asked Questions
What is the maximum temperature resistance of these insulation panels?
The core material features a standard temperature resistance of 1000℃, with overall panel resistance capabilities reaching up to 1100℃.
Can the sizes and shapes of the insulation panels be customized?
Yes, we provide fully custom-made sizing and offer flexible panels suited for various customized shapes, including slotted insulation panel designs.
Are these high-temperature insulation panels safe and eco-friendly?
Absolutely. Our panels are non-toxic, environment-friendly, smokeless, and odorless. They do not contain any inhabitable harmful fibers and meet or exceed energy efficiency regulations.
What is the life expectancy of the panels?
These panels are designed with durability in mind, offering a lifespan of more than 50 years without pulverization under normal operating conditions.
What are your shipment terms and loading ports?
We support FOB, CFR, CIF, EXW, and DDP delivery terms. Shipments can be dispatched from major ports including Shanghai, Shenzhen, and Guangzhou.
What are your payment term configurations?
We support payment currencies like USD, EUR, JPY, CAD, CNY, and AUD. Payment terms include T/T, L/C, D/P, D/A, Western Union, and Cash.
