China Low Temperature Cold Chain Logistics Fumed Silica Vacuum Insulation Panel Company, Companies
Zerothermo’s Vacuum Insulation Panel (VIP) is the ultimate thermal solution for pharmaceutical cold chain, safeguarding vaccines, blood products and biopharmaceuticals. With a thermal conductivity as low as 0.0045 W/(m·K) — 1/8 that of traditional foam — it maintains temperature stability, and cutting drug loss.
Ultra-thin (25mm replaces 100mm conventional insulation) and lightweight, it boosts container capacity and reduces coolant usage. Class A fire-resistant, RoHS/REACH certified, and with up to 50-year service life, it ensures compliance with pharmaceutical cold chain standards for reliable, cost-effective cold chain protection.
Excellent thermal insulation performance (up to 10 times more efficient than traditional insulation materials)
Maximum thermal protection (Low Thermal Conductivity ≤ 0.0045 W/mK)
Consists of 100% Non-Toxic materials with recycled materials
Meet or exceed energy efficiency regulations and standard
Core material consists of a pressed powder board of fumed silica
Flexibility for various shapes & size with thin design (5-50mm thickness)
Support custom sample with fast delivery time.
Using the best high-barrier films (sealed under vacuum with a gas-vapor-tight film)
More than 50 years life span
ROHS and REACH Certified by SGS
Supply Ability
50000 Square Meter/Square Meters per Month
Packaging Details
Strengthened Carton on Pallet
Loading Port
Shanghai, Shenzhen China
Prices and Delivery Terms
FOB, CFR, CIF, EXW, DDP
Payment Currency
USD, EUR, JPY, CAD, CNY, AUS
Payment Terms
T/T, L/C, D/P D/A, Western Union, Cash
Performance Index Specifications
Regular Index
Unit
Performance
Temperature Rating
℃
-80-70
Core Material Density
Kg/m3
180±10
Tensile Strength
KPa
≥80
Compression Strength
KPa
≥100
Puncture Strength
N
≥14
Thermal Conductivity
W/(m.K)
≤0.0045
Product Description & Customization
Vacuum insulation panels can be customized in various shapes and sizes. The size range spans Length (300-1200mm) * Width (300-800mm) * Thickness (5-50mm), designed to be super thin & lightweight. The best high-barrier films on the market are utilized to guarantee a long service life of the panel (more than 50 years). The core material consists of a pressed powder board of fumed silica, manufactured from 100% Non-Toxic Materials with Recycled Materials.
Standard Sizes
300mm x 600mm x 25mm400mm x 600mm x 25mm800mm x 600mm x 25mm900mm x 600mm x 25mmCustomized size & shape (Length: 300-1200mm | Width: 300-800mm | Thickness: 5-50mm)
Application Fields

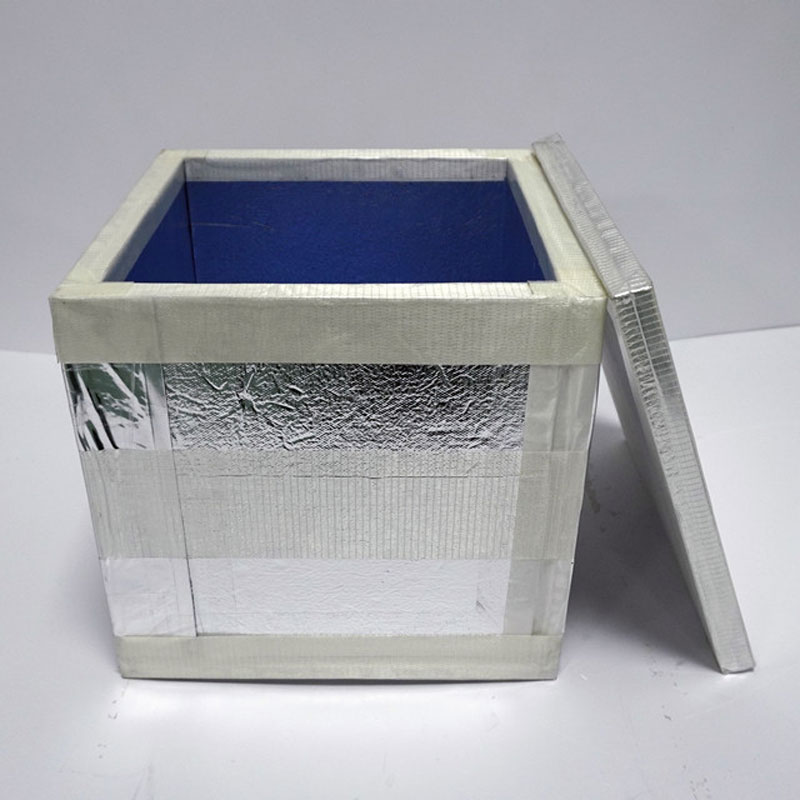

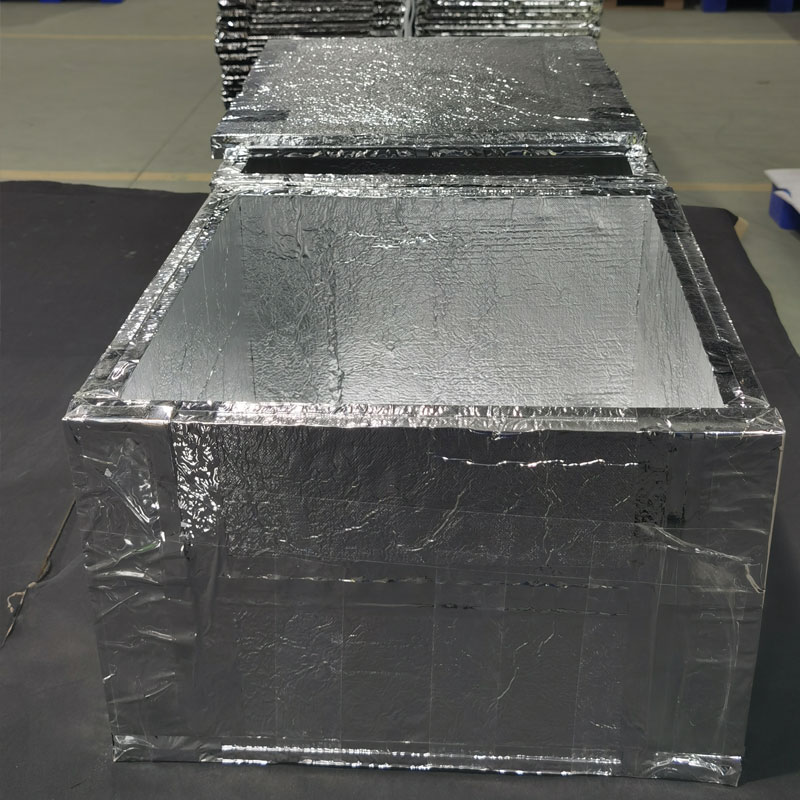

Medicine Incubator Freezer Refrigerator Cold Chain Logistics (especially used for vaccine cold boxes, ultra-low temperature freezers, cold storage containers), household refrigerators, yacht refrigerators, mini refrigerators, car refrigerators, cryogenic freezers, vending machine.
Production Process Flow
1Core Material mixing
2Core producing(Mold Type)
3Core cutting
4Core packing with non-woven envelop
5Core drying
6High barrier laminated foil packing
7Vacuum process
8First test and leakage inspection
9Flaps folding
10Leakage inspection by standing
11All test
12Carton packaging
Dimensional & Packaging Index
Regular Index
Unit
Performance
Length
mm
≤1200
Width
mm
≤800
Thickness
mm
5-80
Tolerance of Length
mm
-3/+2 (Length/Width ≤500mm)
Tolerance of Thickness
mm
±1 (Thickness ≤30mm)
Film Material Folding Method
Aluminized Film / Positive & Negative Film Back Seal / Four Side Seal

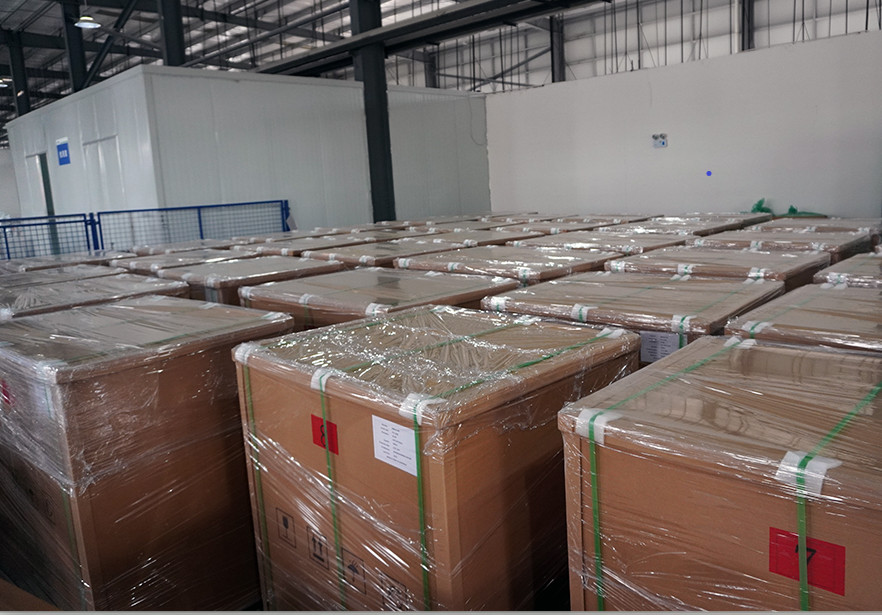

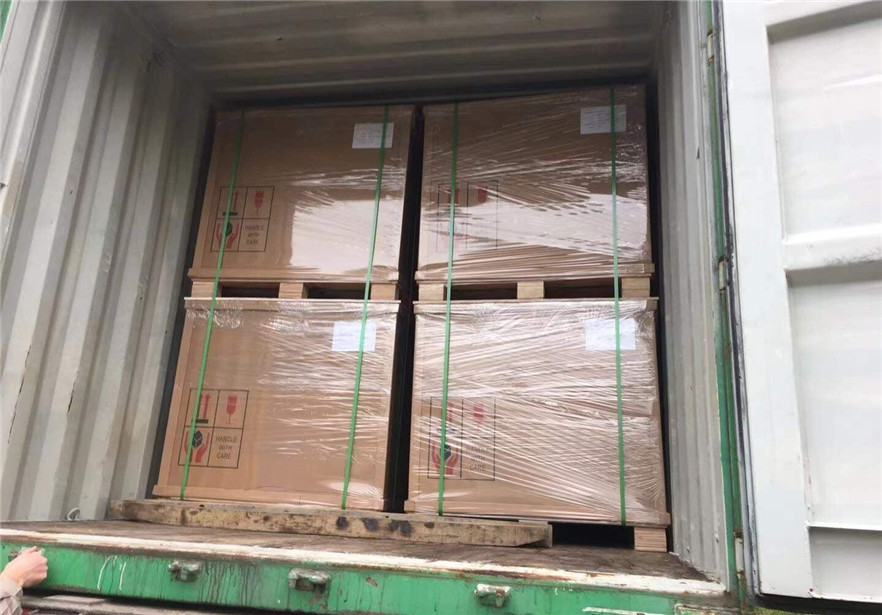

Packing For Transportation
Wooden Carton + Pallet
Frequently Asked Questions (FAQ)
What is the thermal conductivity of your vacuum insulation panels?
The thermal conductivity of our vacuum insulation panels is ≤ 0.0045 W/(m.K), which delivers maximum thermal protection and is up to 10 times more efficient than traditional insulation materials.
What core material is used in these panels?
The core material consists of a pressed powder board of fumed silica, manufactured using 100% non-toxic and recycled materials, ensuring an environmentally friendly composition.
Are the sizes and shapes of the vacuum insulation panels customizable?
Yes, we support fully customized shapes and sizes. Our standard production size limits range up to 1200mm in length, 800mm in width, and thickness options from 5mm to 80mm.
What is the typical lifespan of these vacuum insulation panels?
By utilizing premium high-barrier laminated films sealed under strict vacuum conditions, the panels offer a reliable service lifespan of more than 50 years.
What are the primary application fields for these panels?
They are highly suitable for Medicine Incubators, Freezers, Cold Chain Logistics (including vaccine cold boxes and cryogenic freezers), household/yacht/car refrigerators, and vending machines.
Which safety and quality certifications do the panels meet?
Our vacuum insulation panels are fully ROHS and REACH Certified by SGS, meeting or exceeding strict international energy efficiency and environmental safety standards.
