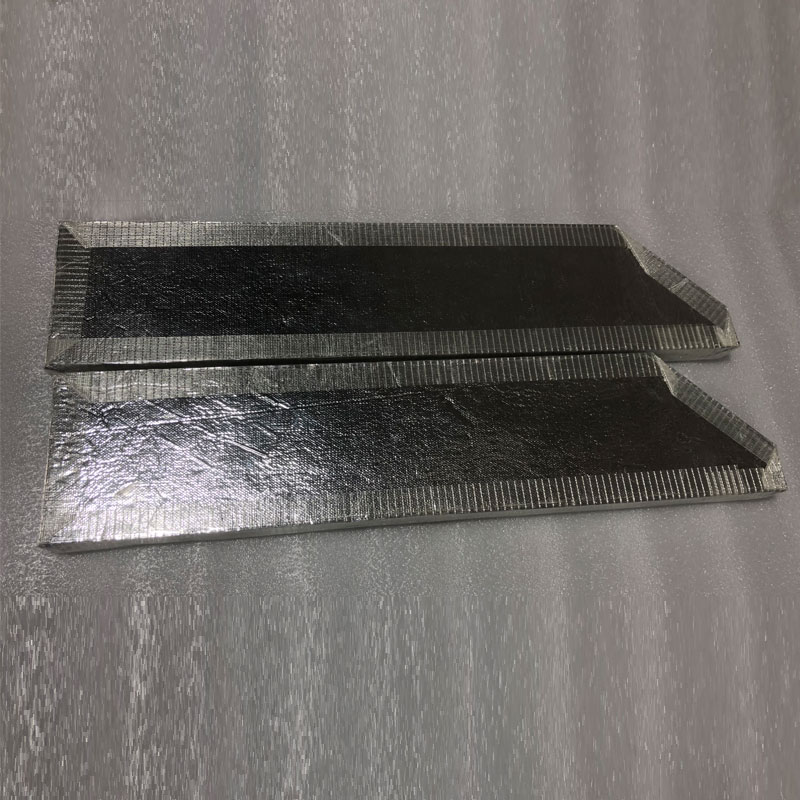

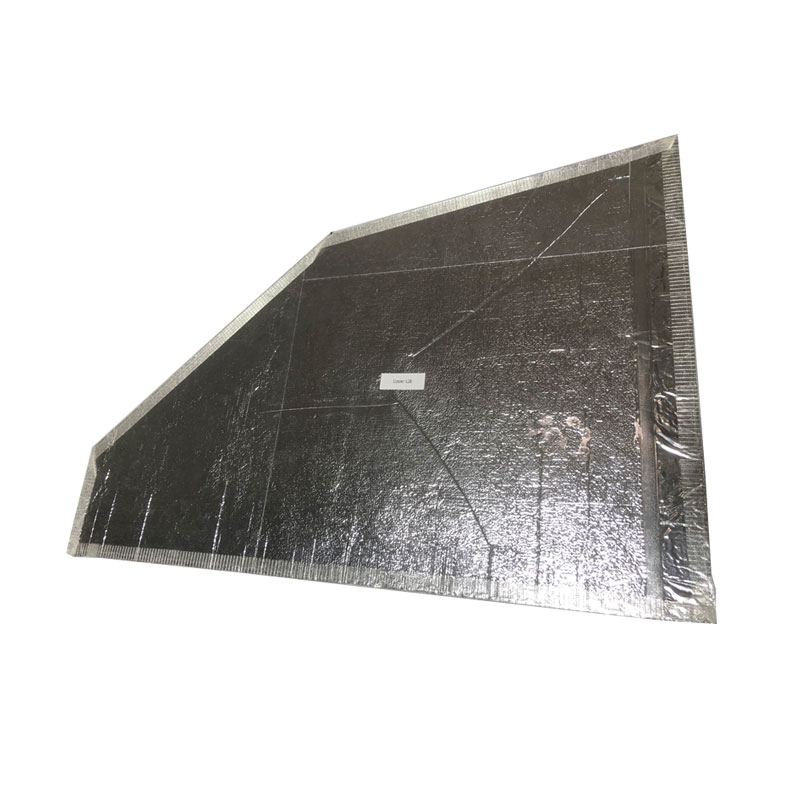

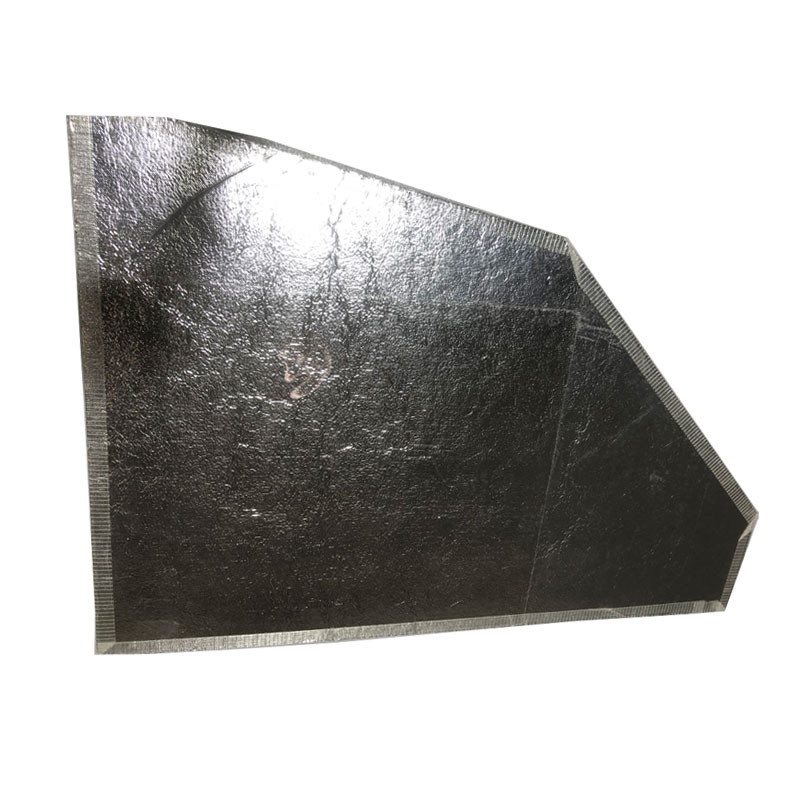

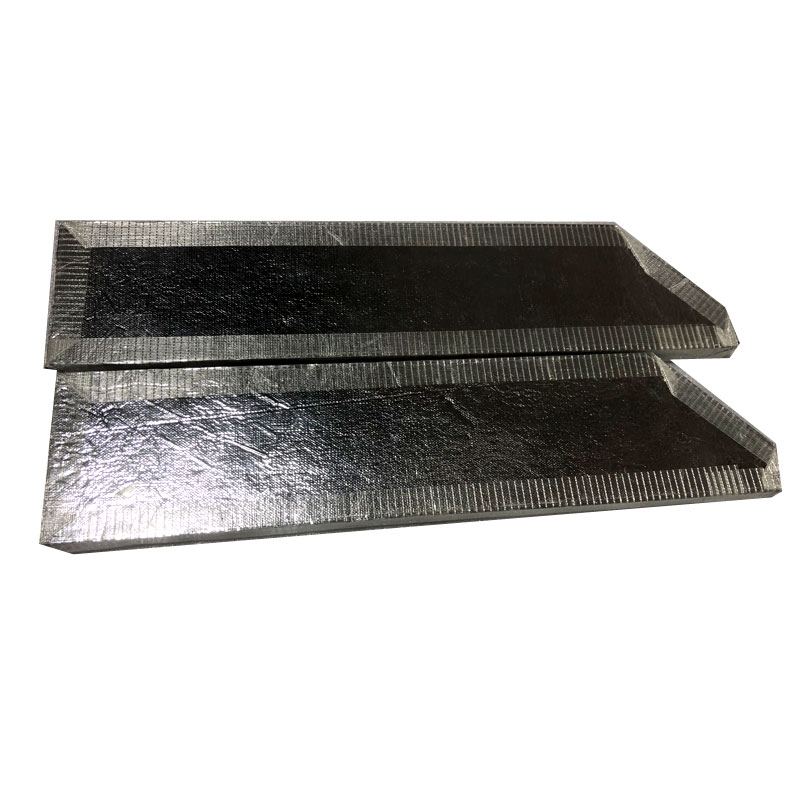

China Fumed Silica Special Shaped VIPs Vacuum Insulation Panel with PET Film Factory, Companies
Fumed Silica Special Shaped VIPs Vacuum Insulation Panel With PET Film, it is a kind of panel with customized design to apply some special equipment and fields,and we use PET film on the surface of the thermal insulated panels.Many experiments have proved that the PET films can effective protection protects the vacuum insulation panel surface, and it can avoid to be punctured or damaged. For PET film color, there are white and silver.Zerothermo vacuum insulation panels can be customized in various shapes and sizes. its size range: Length(300- 1200mm)*width(300-800mm)* thickness(5-50mm), it is super thin & lightweight , and we use the best high barrier films on market to guarantee a long service life of the VIP( more than 50 years).The core material consists of a pressed powder board of fumed silica, consists of 100% Non-Toxic Materials with Recycled Materials.Zerothermo Team are focused on innovating vacuum technology for many years, If you need these vacuum insulation panels (VIP), please feel free to contact us, we will reply you back in 12 hours with best customer service.
Thermal Conductivity After Being Punctured [W/(m·K)]
≤0.025
Service Life [years]
≥50
Flame-retardant
Level A
Working Temperature [°C]
-70~80
Durability (W/m.k)
Increase rate ≤0.001 (Aging test)
Size
300mm x 600mm x 25mm
400mm x 600mm x 25mm
800mm x 600mm x 25mm
900mm x 600mm x 25mm or customized size
Vacuum Insulated panels (VIP) are designed for space, weight and thermal management in low temperature-controlled range applications, such as cold chain logistics (especially used for vaccine cold boxes, ultra-low temperature freezers, cold storage containers), and household refrigerators.
Vacuum insulation Panels Insulated VIPs with PET film Features:
Special Shape Vacuum insulated panels as required
PET films color: Transparent or Silver
Excellent thermal insulation performance (up to 10 times more efficient than traditional insulation materials)
Maximum thermal protection (Low Thermal Conductivity ≤ 0.0045 W/mK)
Consists of 100% Non-Toxic materials with recycled materials
Meet or exceed energy efficiency regulations and standard
Core material consists of a pressed powder board of fumed silica
Flexibility for various shapes & size with thin design (5-50mm thickness)
Support custom sample with fast delivery time
Using the best high-barrier films (sealed under vacuum with a gas-vapor-tight film)
More than 50 years life span
Manufacturing Process Flow:
Core Material mixingCore producing (Mold Type)Core cutting (custom size)Core packing with non-woven envelopeCore drying (removing moisture/debris)High barrier laminated foil packingVacuum processFirst test & leakage inspectionFlaps foldingLeakage inspection by standingAll testCarton packaging
Packaging: Wooden Carton + Pallet
Frequently Asked Questions (FAQ)
Q:
What are the primary applications of Vacuum Insulated Panels (VIP)?
Vacuum Insulated panels (VIP) are ideal for applications requiring precise thermal management in limited spaces. They are widely used in cold chain logistics (such as vaccine cold boxes, ultra-low temperature freezers, and cold storage containers) and household refrigeration systems.
Q:
How efficient are these panels compared to standard insulation?
These VIPs provide outstanding thermal protection with an extremely low thermal conductivity of ≤ 0.0045 W/mK, making them up to 10 times more efficient than traditional insulation materials.
Q:
What is the core composition and environmental safety of your VIPs?
The core consists of a pressed powder board made of fumed silica. It is made from 100% non-toxic, eco-friendly, and recycled materials, meeting strict energy efficiency regulations.
Q:
Can the size and shape of the VIPs be customized?
Yes, they offer great flexibility for special shapes and customized dimensions. Standard sizing includes options like 300x600x25mm, 400x600x25mm, 800x600x25mm, and 900x600x25mm.
Q:
What is the estimated service life of the Vacuum Insulated Panels?
These panels are built for long-term reliability and have a durability rating of ≥ 50 years under standard working conditions.
