Insulation blankets help to reduce heat loss from the water heater, which can lead to significant energy savings. By reducing the amount of heat lost to the environment, the water heater requires less energy to maintain the desired temperature.
Reduced energy consumption means lower energy bills. Over time, the savings on energy costs can more than offset the initial cost of the insulation blanket.
Insulation blankets help to maintain the temperature of the water in the tank, which means that hot water is available more quickly and for a longer period of time. This is especially useful for households with high hot water demand.
By reducing the amount of heat lost to the environment, insulation blankets can help to reduce the workload on the water heater. This can extend the lifespan of the water heater and reduce the need for repairs or replacement.
Insulation blankets can help to reduce the surface temperature of the water heater, which can reduce the risk of burns or other injuries. Additionally, they can help to prevent the accumulation of condensation on the tank, which can cause corrosion and other damage over time.
| Properties | Conditions | Unit | 850 Type | 950 Type | 1050 Type | 1150 Type |
|---|---|---|---|---|---|---|
| Temperature Rating | - | ℃ | 850 | 950 | 1050 | 1150 |
| Core Material Density | - | Kg/m³ | 240-300 | 240-300 | 300-350 | 350-450 |
| Compression Strength (Deformation at 10% Pressure) |
- | MPa | ≥0.3 | ≥0.3 | ≥0.32 | ≥0.5 |
| Specific Heat Capacity | 800℃ | kJ/(kg.K) | 1.07 | 1.07 | 1.07 | 1.08 |
| Thermal Conductivity | 200℃ | W/(m.K) | 0.022 | 0.022 | 0.023 | 0.025 |
| 400℃ | W/(m.K) | 0.024 | 0.024 | 0.026 | 0.031 | |
| 600℃ | W/(m.K) | 0.028 | 0.028 | 0.03 | 0.037 | |
| 800℃ | W/(m.K) | 0.03 | 0.03 | 0.034 | 0.042 | |
| High Temperature Line Shrinkage | 850℃ 24h | % | ≤2.0 | ≤0.5 | ≤0.1 | ≤0.1 |
| 950℃ 24h | % | - | ≤2.5 | ≤0.5 | ≤0.1 | |
| 1050℃ 24h | % | - | - | ≤2.5 | ≤0.8 | |
| 1150℃ 24h | % | - | - | - | ≤3.5 |
They significantly improve energy efficiency by preventing heat loss, which leads to lower energy costs. They also increase the speed and availability of hot water, prolong the lifespan of your heater by reducing workload, and lower the outer surface temperature to improve safety.
Depending on the specific type selected, these high-temperature insulation blankets are rated to handle temperatures ranging from 850°C up to 1150°C.
Yes, we offer fully customized sizing and thicknesses ranging from 5mm to 50mm. The dimensional tolerance is strictly maintained within ±2mm for length and width, and ±1mm for thickness.
These blankets are primarily designed for insulating water tanks and a wide variety of other industrial high-temperature equipments that require efficient thermal retention.

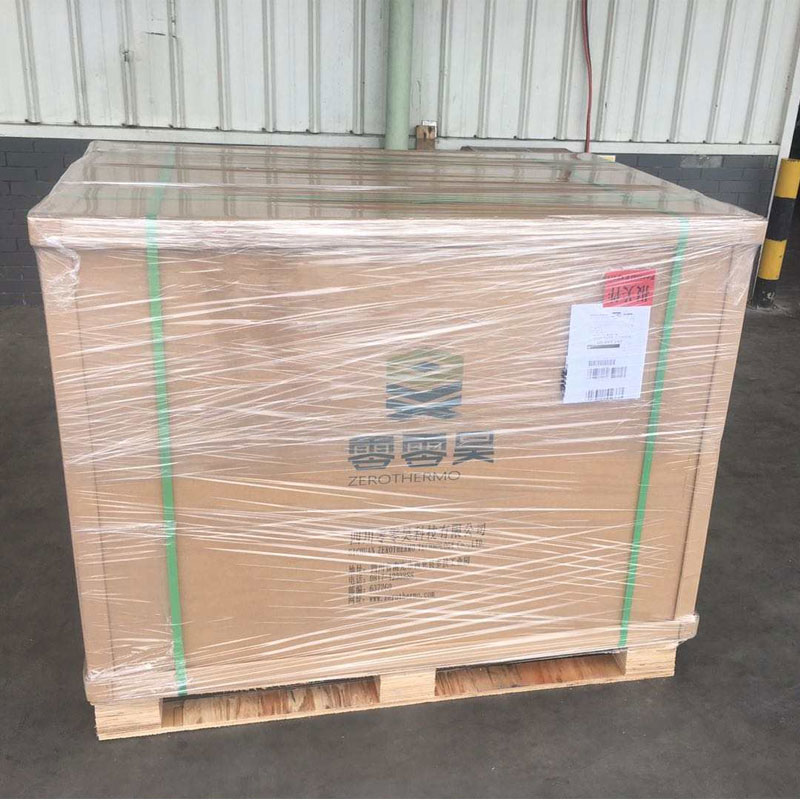

Our monthly supply capacity is 50,000 square meters. Products are securely packed in wooden cartons or strengthened cartons mounted on pallets to ensure safe delivery.
We support FOB, CFR, CIF, EXW, and DDP delivery terms. Payments can be processed in multiple currencies including USD, EUR, JPY, CAD, CNY, and AUD via T/T, L/C, D/P, D/A, Western Union, or Cash.
